Introducing our new range of Marley SolarTile® Integrated PV panels

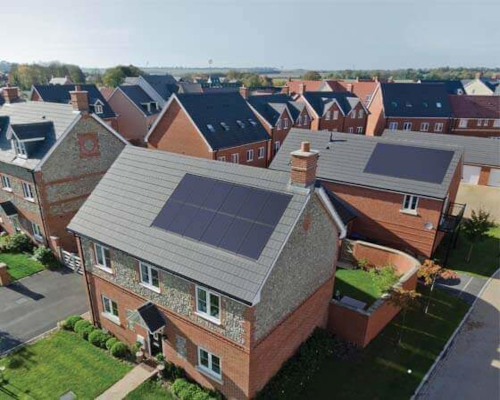

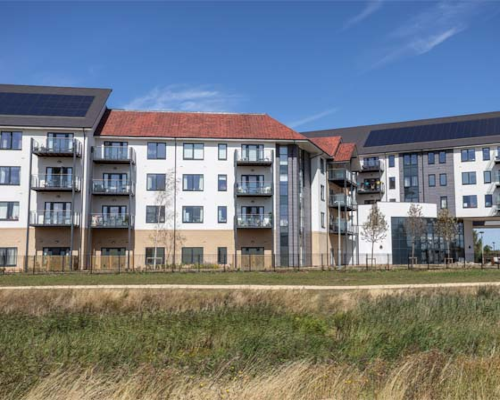

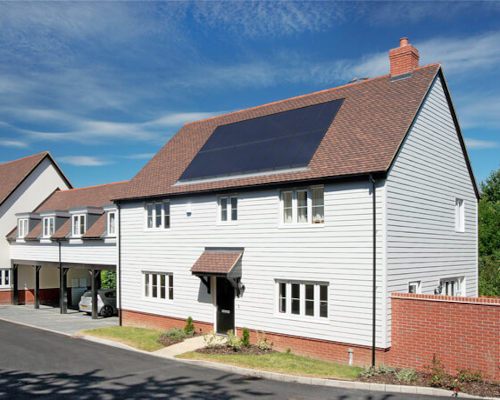

Marley SolarTile® in situ - Image 1 Marley SolarTile® in situ - Image 2 Marley SolarTile® in situ - Image 3

Marley SolarTile® is a roof-integrated solar panel roof tile solution available in two sizes - 335Wp and 405Wp, enhancing roof system specification with design flexibility, sleek aesthetics, industry leading wind and fire performance, all covered by the Marley 15-year full roof system warranty.

Solar configurator

Design your own solar system with this Unique Solar Configurator - just click on the Marley logo below (the link will take you to the configurator embedded in our website and hosted by Marley). The tool will allow you to design your array and provide a full 'shopping list' of panels and flashings.


Once you've downloaded your product list feel free to give us a call on 0118 978 6468 to discuss your project or click here to go to our on-line shop.

Designed for new build and refurbishment on existing buildings

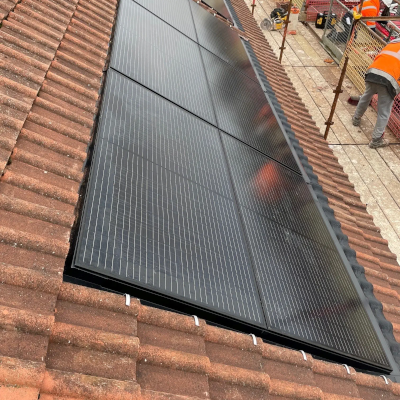

Marley SolarTile® - North Ayrshire Council

Marley Solar PV is an ideal choice for both roof refurbishments and new-build projects, providing an uncluttered finish with no visible brackets or racking, as well as easy maintenance and a market-leading 15-year guarantee.

Marley SolarTile® can be fitted as part of a typical roofing project, combining rapid installation with exceptional aesthetics. Thanks to the patented push-together design, installation times for your solar rooftop can be less than one hour per kilowatt peak.

All in the panel details

Marley 335Wp panels measure 1000x1686mm and are particularly suited to domestic installations where obstacles such as dormers or roof windows may be present. The 405Wp, being larger, allow a greater Wp per m² of roof area and therefore require fewer panels to achieve a desired output. They can be installed in a landscape or portrait orientation and are easily combined using patented push-fit technology to create solar arrays of any shape and size. As well as this, the industry leading 5mm panel spacing and hidden fixings give a high-end, sleek aesthetic to your solar roof.

Panel performance

Marley SolarTile® is the only roof-integrated solar system accredited with the highest resistance to spread of flame and fire penetration in all European fire safety tests, achieving BRoof T1, T2, T3 and T4.

The PV solar tiles also provide excellent weather-tightness and wind resistance, without the need for extra roof batten support, adhesive flashing rolls or fireproofing materials. The certified wind resistance for Marley SolarTile® is more than four times higher than competitor PV roof tiles and is suitable for even the most exposed locations.

Marley SolarTile® is compatible with the entire range of Marley roof coverings, including clay and concrete tiles and cedar shingles and shakes, and it is suitable for installation on low-pitch roofs.

Monocrystalline panel

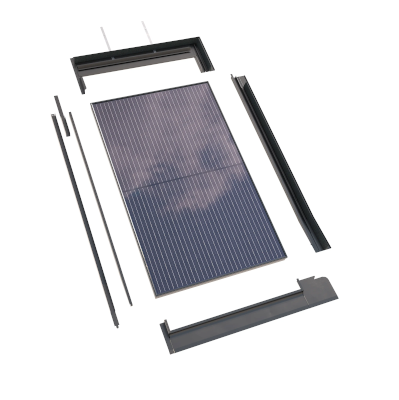

Marley SolarTile® - Exploded View Such flexibility is also seen through the availability of half-cut cells introduced for the first time on Marley SolarTile®. The use of two parallel circuits in the module halves the current in the cells and provides several technical benefits once the solar system is in operation. These include higher panel efficiency with reduced resistance losses at the cell connections; each half of the cell’s performance is unaffected by shading on the other; lower heating effect from spot shading and greater resistance to mechanical stress in bending.

A complete system

We are now able to offer a complete solar solution with a range of String (Clearline) and Hybrid (ES-G2) inverters. Available for a variety of Wp outputs, these state-of-the-art inverters feature the latest safety technology and monitoring capabilities. The latter are designed for integration with battery storage solutions which we can offer in the form of the Lynx Home U Series. An EV charger is also available to complete our solar offer. All these solutions are supplied as part of Marley's SolarTile® product range.
